TSSP: Virtual Secondary Database - Views

Some views of the data
Unless otherwise stated: base height is 20% of the coil length, no toroid.

Updated: 19 Jul 2008

  Q-factor

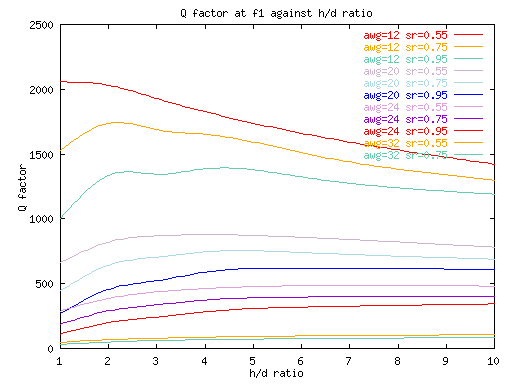

Q factor for an 80cm coil.
  Forward transfer impedance

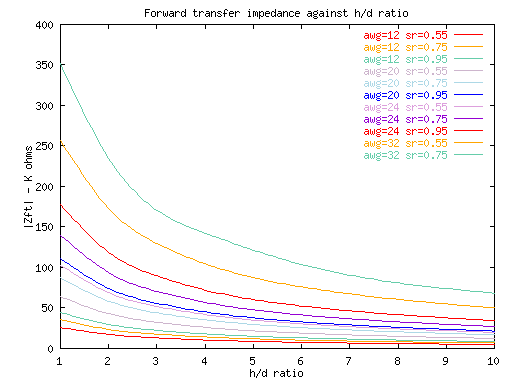

Zft for an 80cm coil.
  Resonant frequency

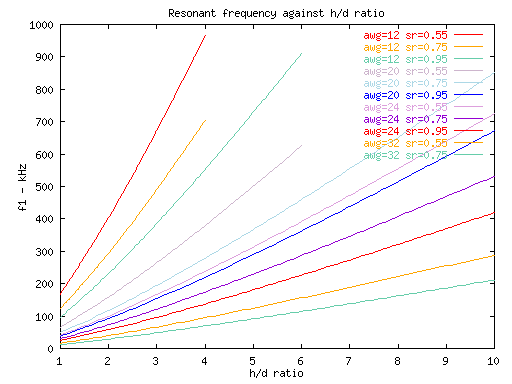

Resonant frequency for an 80cm coil.
  Equivalent energy capacitance

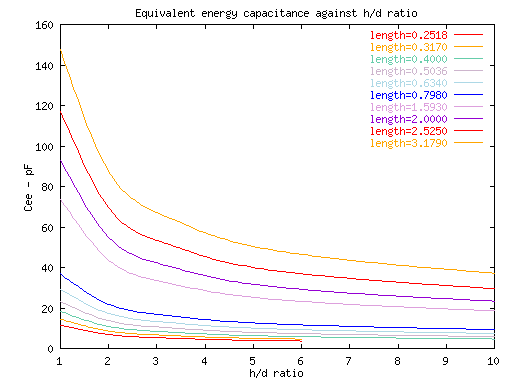

Energy storage capacitance for various lengths of coil.
  Les/Ldc ratio - inductance utilisation factor

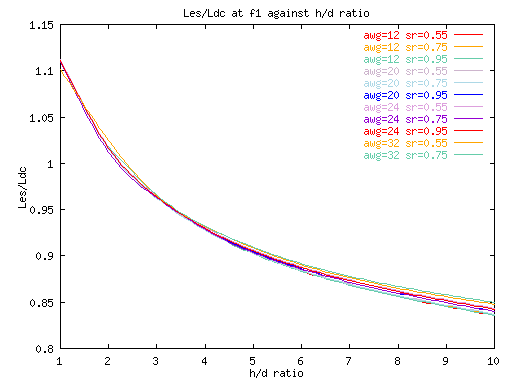

Les/Ldc for an 80cm coil, base=20%.

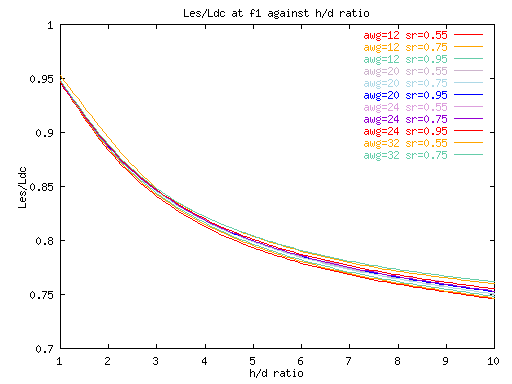

Les/Ldc for an 80cm coil, base=50%. Toroid diameter = 150%.
